- Den/Study/Office
- Dining Room
- Great Room
- Master Bedroom on Main Floor
- Walk-in Closet
- Total sq ft
- 2232
- Bedrooms
- 3
- Width × depth
- 62′0″ × 70′2″

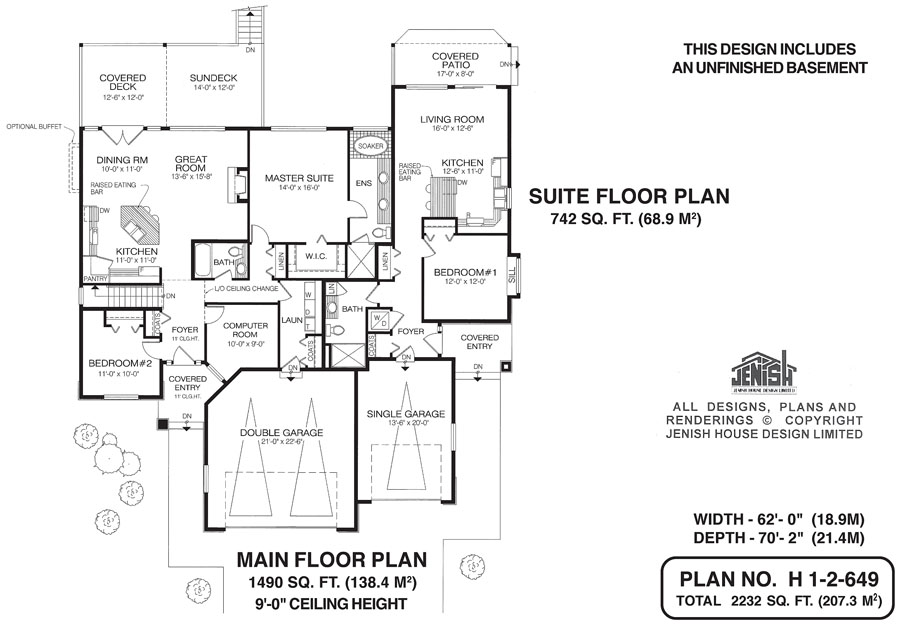

Floor plan — 1-2-649

Plan specifications
| Bedrooms | 3, + Den |
|---|---|
| Floor Plan | Unfinished Basement |
| Garage Spaces | 3 |
| Lot | Walk-Out Basement |
| Patio/Deck | Covered Porch/Deck, Covered Rear Porch/Deck, Sundeck/Balcony |
| Plan Category | Single Family |
| Storeys | Walk-out |
| Style | Craftsman |
| House Type/Structure | Straight Entry, Duplex / Multi Family |
House plan
1-2-649
From: $1,065.00
USD prices are estimates. Checkout is charged in CAD.
What’s included?
Plan Prices and Options
5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.
Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.
Construction PDF Only
A digital PDF of the house plan which includes a single build license.
Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.
The plans for this attractive two-family home, with arts-and-crafts detailing in the mullioned windows, include an unfinished basement for future expansion. In the two-bedroom home on the left side of the building, a covered entry leads into a compact foyer, with the second bedroom to the left and a handy computer room to the right. A coat closet is located near the stairway down to the unfinished basement. The great room features a gas fireplace, as well as large windows overlooking a sundeck, with stairs down to the back garden. The dining room includes french doors that open to a covered deck, perfect for year-round grilling and al fresco meals in the warmer months. The kitchen is divided from the dining room and great room by a hexagonal prep island and two-seat eating bar. Double sinks are located in the prep island, so whoever draws dish duty will not feel isolated. The kitchen’s corner pantry will provide welcome storage, and the L-shaped counter configuration will save steps for the cook. The master bedroom includes an ensuite with a soaker tub and double sinks, as well as a shower stall. The walk-in closet should be large enough for the most fashion-conscious couple’s clothing. A linen cupboard is tucked in near the entrance. A three-piece bathroom is located across the foyer from the second bedroom. Completing the lay-out is a laundry room with a coat cupboard and access to the double garage. Ceilings all measure nine feet. The east wing of the home contains a one-bedroom suite. A covered entry leads into a foyer with a coat closet. Nearby is a cupboard with a stacked washer and dryer, tucked in just outside the three-piece bath. The bedroom is located across from a linen closet, and includes an extra-wide sill.The open-plan living room opens through sliding doors to a covered patio. The kitchen has a two-seat eating bar and an efficient U-shaped counter configuration. This two-family home measures 62 feet wide and 70 feet, two inches deep, for a total of 2,232 square feet.
