- Total sq ft
- 2592
- Bedrooms
- 3
- Width × depth
- 30′0″ × 59′0″

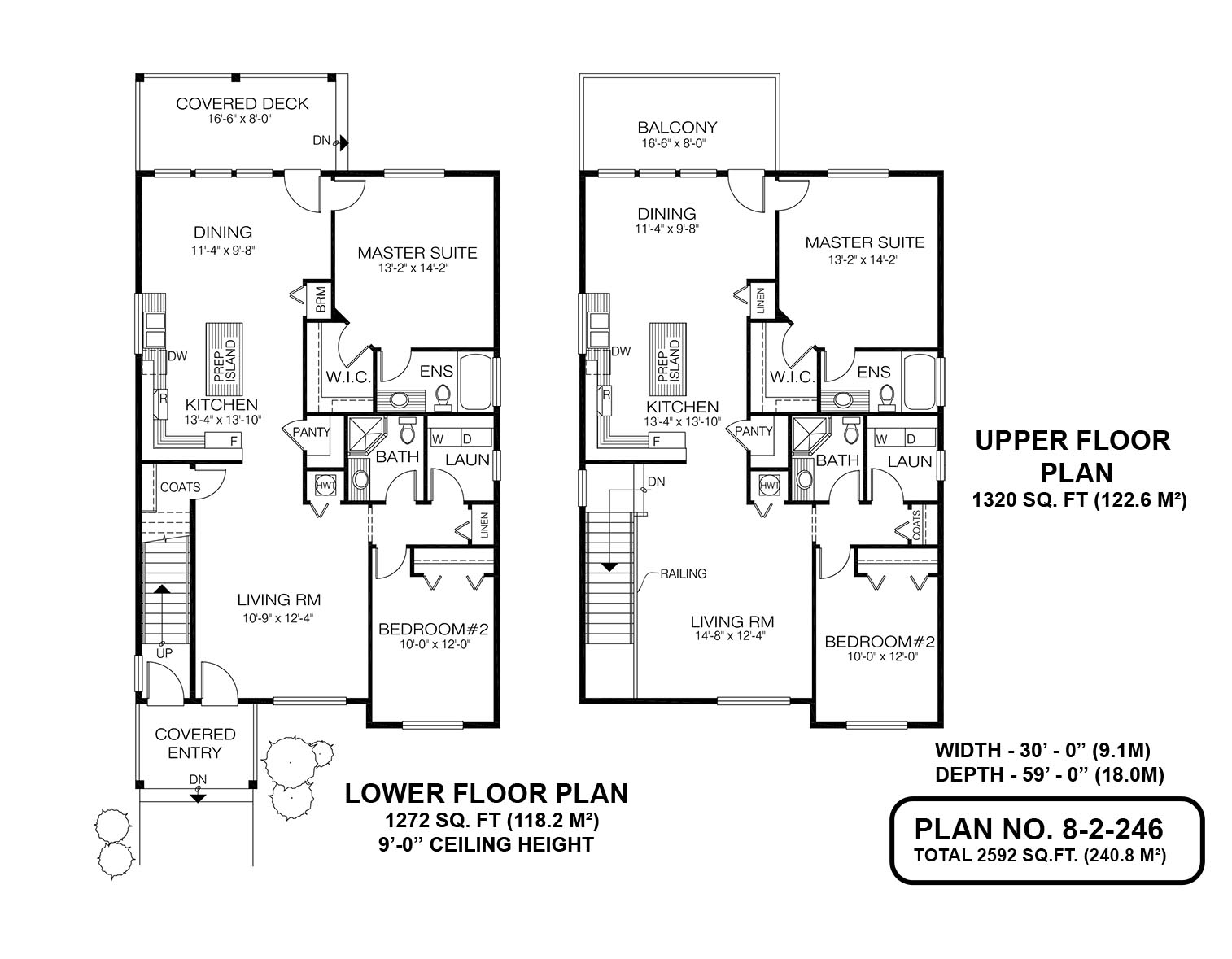

Floor plan — 8-2-246

Plan specifications
| Bedrooms | 3 |
|---|---|
| Lot | Flat Lot |
| Patio/Deck | Covered Porch/Deck, Sundeck/Balcony |
| Plan Category | Duplex |
| Storeys | 2 |
| House Type/Structure | Duplex / Multi Family |
House plan
8-2-246
From: $1,145.00
USD prices are estimates. Checkout is charged in CAD.
What’s included?
Plan Prices and Options
5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.
Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.
Construction PDF Only
A digital PDF of the house plan which includes a single build license.
Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.
Board-and-batten cladding and shingled gables lend this two-storey duplex a traditional air, but inside, the two identical plans boast all the amenities that a contemporary family desires. The homes are stacked, one upstairs and one down, and the entry to both is through a covered porch. One front door leads to a stairway up to the second floor, while the second door opens into the living room that overlooks the front garden. Upstairs, the living room is open to the stairwell, protected by a railing. The kitchen and dining room are located at the back of the home, with access to a balcony. Downstairs, the living room opens onto the kitchen, with a dining area beyond that opens to a covered deck. Both kitchens enjoy step-saving U-shaped counter configurations and a prep island, as well as natural light from a window over the double sink. A spacious pantry will provide extra storage space, and a handy closet is designed to accommodate cleaning materials. The master suite overlooks the back garden and includes a roomy walk-in closet as well as a three-piece ensuite. The second bedroom looks out to the front. A bathroom with a shower stall is nearby, next to the laundry room and linen cupboard. Nearby is a closet for the hot-water tank. The upper floor is slightly larger than the lower floor, at 1,320 square feet. On the lower floor, ceilings rise to nine feet throughout. As well as vertical board-and-batten siding, exterior finishes include wood shingles and painted woodwork. Wooden pilasters with brick bases flank the two front doors, and the brick is echoed on the lower part of the facade. The duplex’s footprint measures 30 feet wide by 59 feet deep, for a total of 2,592 square feet of living space.
