Total sq ft
1599
Bedrooms
3
Width × depth
41′6″ × 62′0″

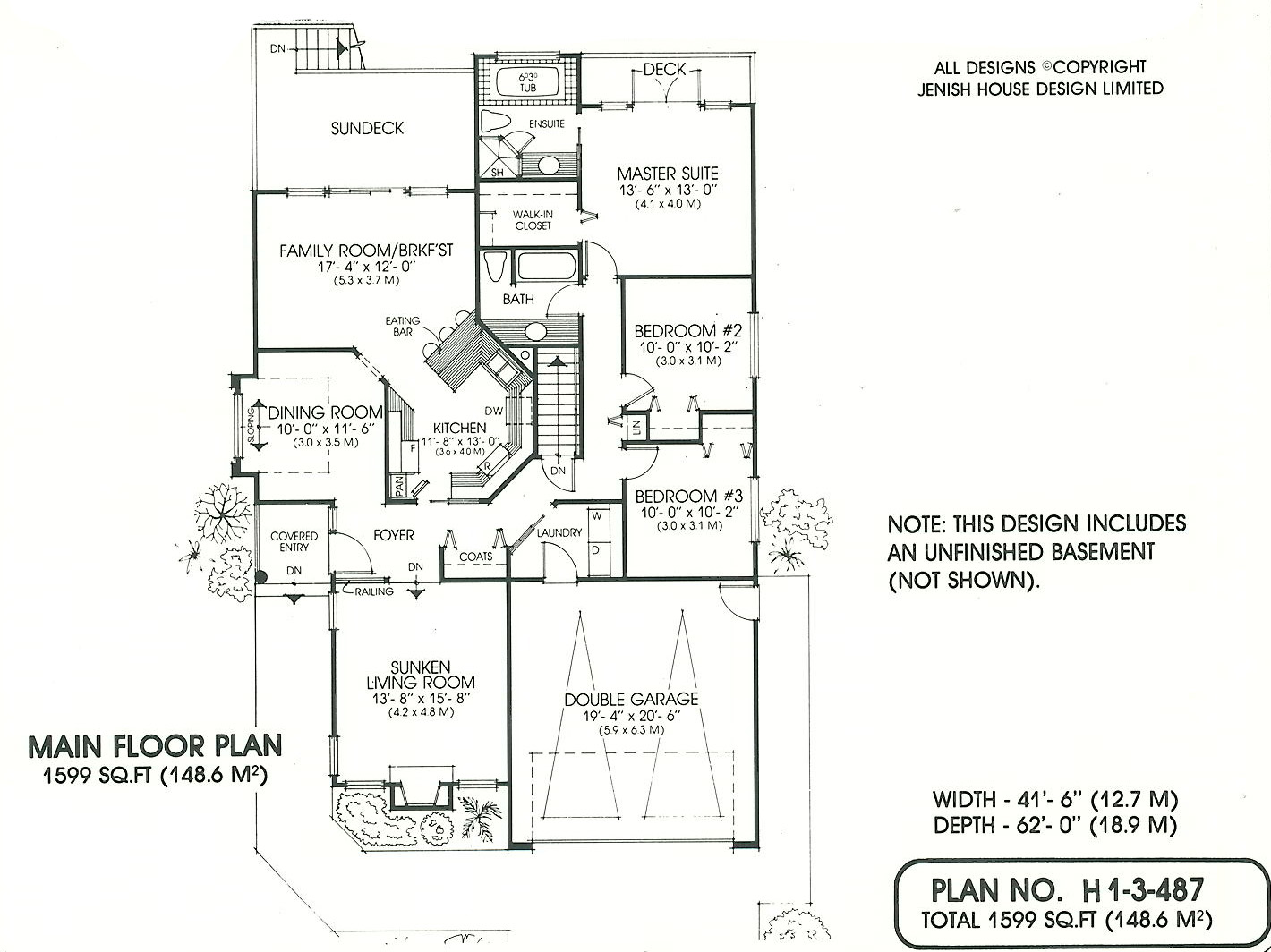

Floor plan — 1-3-487

Floor plan for 1-3-487

Plan specifications

Bedrooms

3

Floor Plan

Traditional Floor Plan, Unfinished Basement

Garage Spaces

2

Lot

Corner Lot, Rear Sloping Lot, Rear View Lot, Small Lot

Patio/Deck

Sundeck/Balcony

Plan Category

Single Family

Storeys

Walk-out, 1

Style

West Coast Contemporary

House Type/Structure

Straight Entry

Foundation options: Walkout Basement, Inground Basement, Crawlspace, Slab

← Back to all plans

House plan

1-3-487

From: $985.00

USD prices are estimates. Checkout is charged in CAD.

What’s included?

Plan Prices and Options

5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.

Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.

Construction PDF Only
A digital PDF of the house plan which includes a single build license.

Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.

Readable Reverse Plan

Material List

Add to list

1-3-487

The side entrance of this three-bedroom home is placed well back from the front, offering a sense of privacy that will appeal to many homeowners. Immediately off the foyer, the sunken living room offers plenty of space to entertain with ease. The dining room across the hall is formally separate, with a sloping ceiling and a boxed window to add to its ambience. Guests are sure to linger after dinner in this attractive room. The irregularly-shaped kitchen has all the features to appeal to the cooks in the family, including a pantry and an eating bar. The adjoining family room and breakfast area has an expanse of windows that will make sure this space enjoys all available natural light. Sliding glass doors open on to a good-sized sun deck. The master suite at the rear of the house has the ultimate luxury -its own private sun deck, accessed through french doors. There is something so appealing about being able to step outside and take a deep breath of fresh air first thing in the morning! The four-piece en suite bathroom is also luxurious, with a soaker tub set into a bay. A large walk-in closet completes this private domain. Bedrooms two and three share the main, three-piece bathroom, which includes a large vanity with plenty of counter and cupboard space. The laundry room is conveniently located on a direct path to the kitchen. The design includes an unfinished basement and would be ideal for a sloping lot with a rear view, or as a single level home. The house is 41 feet, 6 inches wide and 62 feet deep with 1,599 square feet of living space.

  • Dining Room
  • Family Room
  • Living Room
  • Master Bedroom on Main Floor
  • Nook/Breakfast Area
  • Walk-in Closet
