Total sq ft
1386
Bedrooms
3
Width × depth
47′4″ × 51′7″

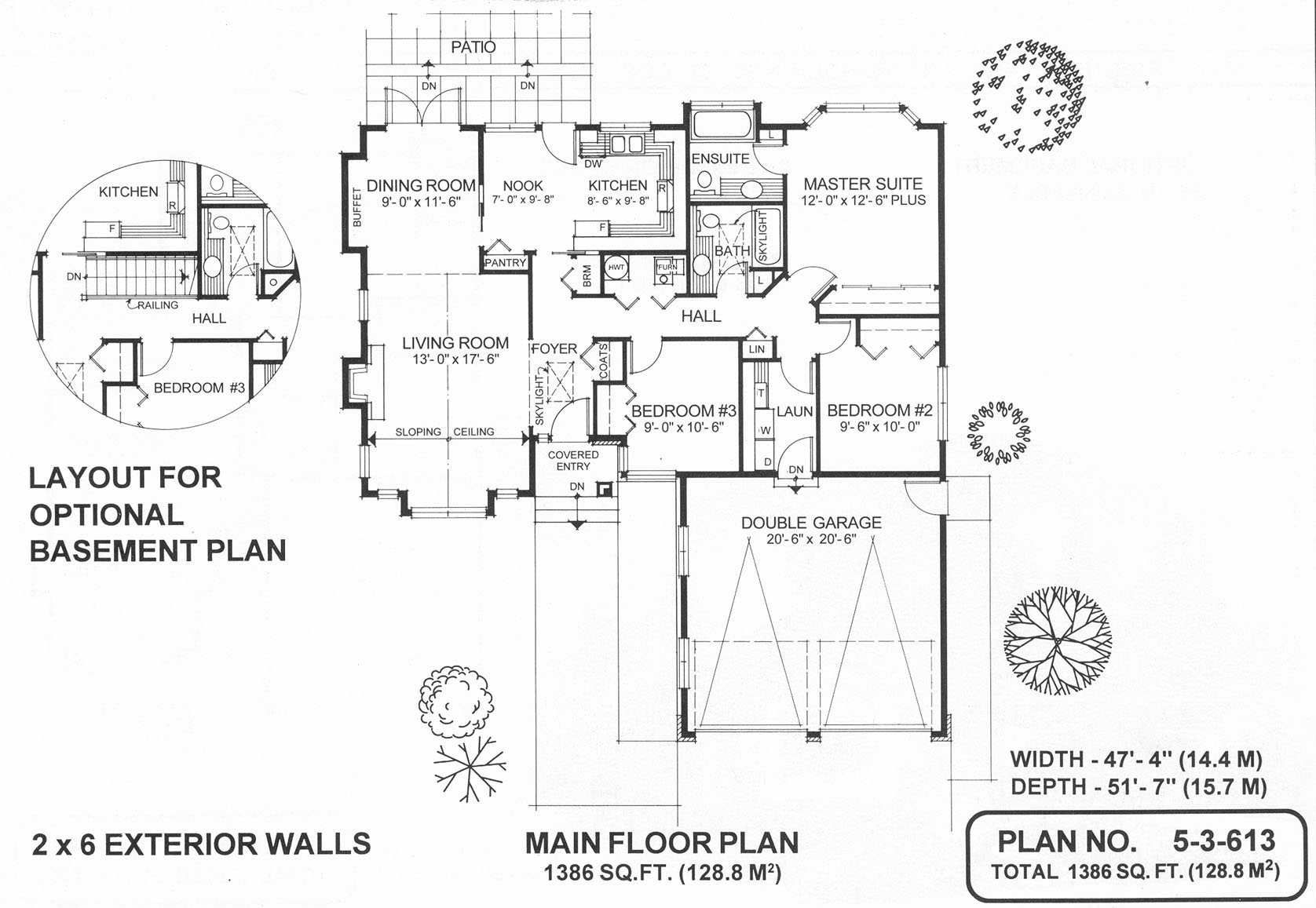

Floor plan — 5-3-613

Floor plan for 5-3-613

Plan specifications

Bedrooms

3

Floor Plan

Traditional Floor Plan

Garage Spaces

2

Lot

Flat Lot

Patio/Deck

Patio

Plan Category

Single Family

Storeys

1

Style

Traditional, West Coast Contemporary

House Type/Structure

Straight Entry

Foundation options: Walkout Basement, Inground Basement, Crawlspace, Slab

← Back to all plans

House plan

5-3-613

From: $885.00

USD prices are estimates. Checkout is charged in CAD.

What’s included?

Plan Prices and Options

5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.

Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.

Construction PDF Only
A digital PDF of the house plan which includes a single build license.

Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.

Readable Reverse Plan

Material List

Add to list

5-3-613

The traditional-styled rancher is as popular as ever with homeowners who prefer main-floor living and this plan fits the bill admirably. The house is designed on a crawlspace, but the plan also includes an optional basement if the site is suitable. The covered entry leads into a skylit foyer. The living room features a cosy fireplace flanked by piano windows. A sloping ceiling is highlighted by a raised circle-top window, which also adds an attractive element to the exterior appearance. The living room is open to the dining room, which includes a recess for a buffet and french doors leading to the rear deck. The adjacent kitchen has a separate, informal eating area, which also has a door to the rear deck. The master suite includes an attractive bay window, which allows for additional natural light and provides a possible sitting area. The three piece ensuite features a boxed-out bathtub space. Bedrooms two and three share a central main bathroom with a skylight and a towel closet. These bedrooms are separated by a full-sized laundry room which has access to the double garage. Siding, with brick and cedar shakes combine for a simple, clean-looking exterior. The house is 47 feet, 4 inches wide and 51 feet, 7 inches deep with 1,386 square feet of living space.

  • Dining Room
  • Living Room
  • Master Bedroom on Main Floor
  • Nook/Breakfast Area
