Total sq ft
1382
Bedrooms
3
Width × depth
49′2″ × 51′8″

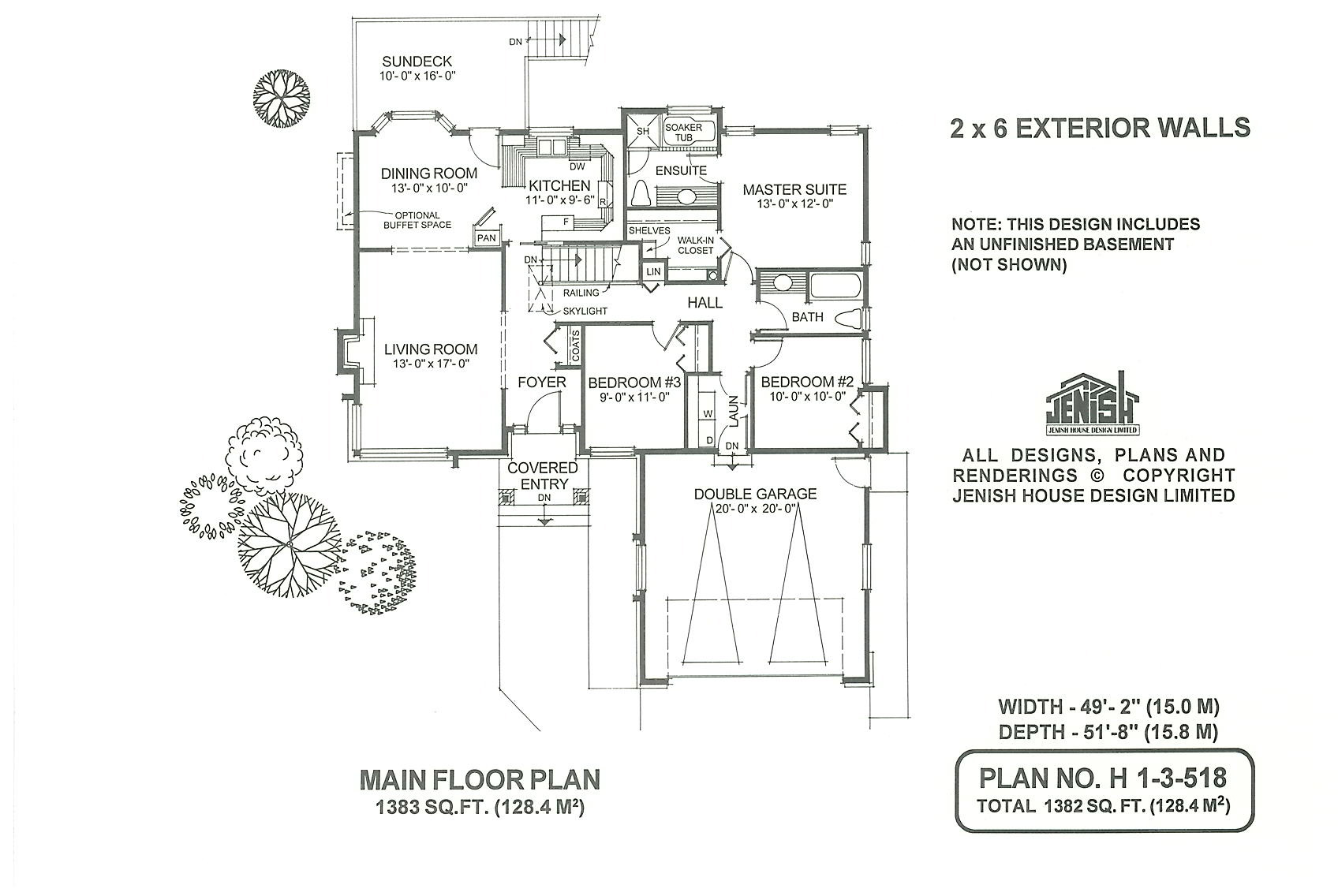

Floor plan — 1-3-518

Floor plan for 1-3-518

Plan specifications

Bedrooms

3

Floor Plan

Traditional Floor Plan, Unfinished Basement

Garage Spaces

2

Lot

Rear Sloping Lot

Patio/Deck

Sundeck/Balcony

Plan Category

Single Family

Storeys

Walk-out, 1

Style

Contemporary, Craftsman, West Coast Contemporary

House Type/Structure

Straight Entry

Foundation options: Walkout Basement, Inground Basement, Crawlspace, Slab

← Back to all plans

House plan

1-3-518

From: $885.00

USD prices are estimates. Checkout is charged in CAD.

What’s included?

Plan Prices and Options

5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.

Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.

Construction PDF Only
A digital PDF of the house plan which includes a single build license.

Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.

Readable Reverse Plan

Material List

Add to list

1-3-518

With its simple, yet stylish exterior, this modest-sized rancher would be equally suitable in urban or country settings. A comfortable, open floor plan makes efficient use of the available floor space. The combination of living room open to the dining area and kitchen creates one huge gathering place. The living and dining combination offers the ideal layout and space for informal living while also providing an attractive setting for entertaining guests. Arched entries to the living room and dining room add character and design to a well organized plan. A gas fireplace will offer a cosy focus for cooler fall and winter evenings. The dining area is highlighted by a bayed window that overlooks the large sun deck with direct access to the sundeck. The adjoining kitchen completes the layout. With plenty of counter space and a pantry, meal preparation will be a breeze. The master suite is located at the rear of the house and features a walk-in closet with shelving and three-piece en suite bathroom with a luxurious garden soaker tub. The second and third bedroom have the use of a three-piece bathroom. The covered front porch with its decorative pillars and stone accents add an inviting focus to the exterior, and opens to a spacious living room. Vinyl or wood siding could be used on the exterior. An optional basement would add plenty of extra space as well as taking full advantage of a rear-view lot. The house is 49 feet, 2 inches wide and 51 feet, 8 inches deep with 1,382 square feet of living space and an unfinished basement.

  • Dining Room
  • Living Room
  • Master Bedroom on Main Floor
  • Walk-in Closet

Plan preview
