- Den/Study/Office
- Dining Room
- Family Room
- Living Room
- Master Bedroom on Upper Floor
- Nook/Breakfast Area
- Total sq ft
- 2193
- Bedrooms
- 5
- Width × depth
- 40′0″ × 54′0″

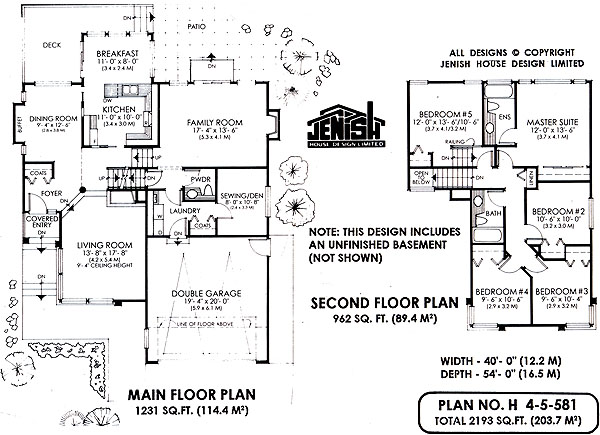

Floor plan — 4-5-581

Plan specifications
| Bedrooms | 5 |
|---|---|
| Floor Plan | Traditional Floor Plan, Unfinished Basement |
| Garage Spaces | 2 |
| Lot | Flat Lot |
| Patio/Deck | Patio |
| Plan Category | Single Family |
| Storeys | 2 |
| Style | Contemporary |
| House Type/Structure | Split Level |
House plan
4-5-581
From: $1,065.00
USD prices are estimates. Checkout is charged in CAD.
What’s included?
Plan Prices and Options
5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.
Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.
Construction PDF Only
A digital PDF of the house plan which includes a single build license.
Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.
Within 2193 square feet, you will find a traditional split level home including five (5) bedrooms and a side entry to maximize the forty feet of width – ideal for a narrow city lot. This multilevel home begins with the foyer overlooking the sunken living room where a 9’-4” ceiling height along with a full set of corner windows highlight the modern, corner fireplace. A decorative pillar will add to the contemporary feeling of this room. A buffet nook is decorated with elegant side windows allowing extra width and light in the dining room. Pocket doors separate the kitchen/ breakfast nook from the rest of the home. Here, a practical ad spacious kitchen overlooks the inviting breakfast nook. Large enough for a good-sized table, this room is encompassed in glass including a slider onto a wrap around sundeck – enjoy your morning coffee on the deck on those warm summer mornings. A few steps down from the central hallway, a huge family room will be the gather place for all you informal entertaining and family functions. Accessible to the rear patio through a set of sliding glass doors, this room will accommodate a comfortable furniture layout as well as your home entertainment centre. Tucked away behind the central laundry and powder room, a private sewing room/ den will be a quiet work area for Mom or Dad. The upper level includes five good-sized bedrooms! A central main bathroom accommodates four bedrooms while the master suite includes a three-piece ensuite. Bedroom number five, located on an upper level, is extra private making it ideal for the older teen in the family or a space guest room. The unfinished basement will be a welcome area for extra recreation and storage space – especially if those four bedrooms are filled with children. Suited for a sloping lot, use your imagination when choosing colours and finishing for this particular home – it is open for many options.
