Total sq ft
2298
Bedrooms
4
Width × depth
46′0″ × 57′0″

Floor plan — 4-4-534

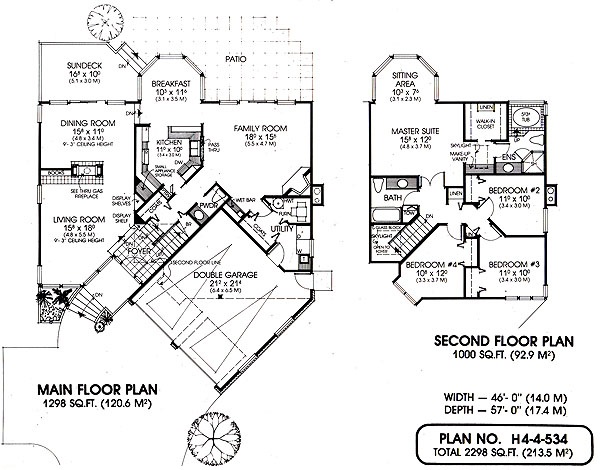

Floor plan for 4-4-534

Plan specifications

Bedrooms

4

Floor Plan

Traditional Floor Plan

Garage Spaces

2

Lot

Corner Lot, Flat Lot, Rear View Lot

Patio/Deck

Sundeck/Balcony

Plan Category

Single Family

Storeys

2

Style

Craftsman

House Type/Structure

Split Level

← Back to all plans

House plan

4-4-534

From: $1,864.00

USD prices are estimates. Checkout is charged in CAD.

What’s included?

Plan Prices and Options

5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.

Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.

Construction PDF Only
A digital PDF of the house plan which includes a single build license.

Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.

Readable Reverse Plan

Add to list

4-4-534

All of the rooms in this stately, contemporary executive are large and designed to create a very comfortable home. Excellent separation between common living areas in the three-level slit makes this plan suitable for active families.

The home would suit a pie-shaped lot or one with specific requirements because the double garage is positioned to give you flexibility when planning.
An open, sky lit foyer creates an impressive entrance and leads into the living room. Multi-paned glass windows add a classic touch, while the contemporary, see-through glass fireplace creates an attractive centerpiece.

Elegant high ceilings are features in both the living and dining room. Sliding glass doors in the dining room open to a spacious sundeck that leads to a full patio.

Bayed windows in the breakfast nook makes this a very pleasant place to dine, and it’s large enough for informal family meals or entertaining.
The kitchen is strategically located between the common living areas. It is compact but very efficient with plenty of cupboard and counter space, a pantry for extra storage, easting bar and a pass through.

A corner fireplace is the focal point of the very large family room. This area is well separated from the more formal living and dining rooms, so it is perfect for entertaining a crowd. Sliding glass doors open to a huge patio. On the second floor, three bedrooms share a full bath. The master suite is luxuriously equipped with a full ensuite with an ultra-tub. There is a sky lit area with a make-up vanity and large walk-in closet.

The bayed sitting area completes the design. There’s room here for a small settee and comfortable chairs, making this master suite a very welcome retreat.

  • Dining Room
  • Family Room
  • Living Room
  • Master Bedroom on Upper Floor
  • Nook/Breakfast Area
  • Walk-in Closet
