- Dining Room
- Family Room
- Living Room
- Master Bedroom on Main Floor
- Nook/Breakfast Area
- Upper Floor Laundry
- Walk-in Closet
- Total sq ft
- 1720
- Bedrooms
- 3
- Width × depth
- 42′8″ × 58′4″

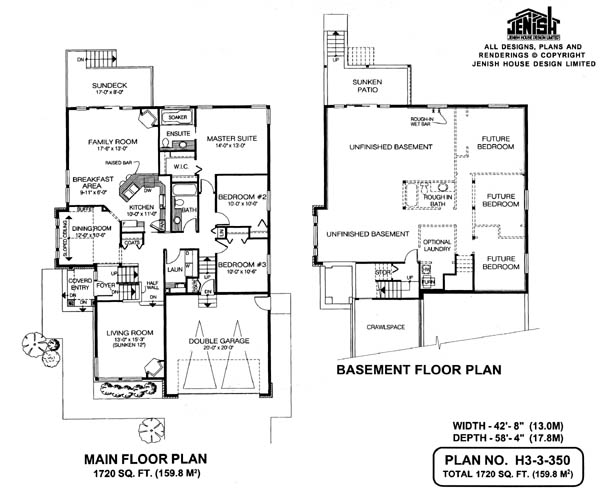

Floor plan — 3-3-350

Plan specifications
| Bedrooms | 3 |
|---|---|
| Floor Plan | Traditional Floor Plan, Unfinished Basement |
| Garage Spaces | 2 |
| Lot | Corner Lot, Flat Lot, Rear Sloping Lot |
| Patio/Deck | Covered Patio, Covered Porch/Deck, Sundeck/Balcony |
| Plan Category | Single Family |
| Storeys | 1 |
| Style | Contemporary, Craftsman, West Coast Contemporary |
| House Type/Structure | Cathedral Entry/Tri-Level |
House plan
3-3-350
From: $985.00
USD prices are estimates. Checkout is charged in CAD.
What’s included?
Plan Prices and Options
5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.
Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.
Construction PDF Only
A digital PDF of the house plan which includes a single build license.
Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.
This dramatic cathedral-entry plan is ideally designed for a corner lot, or one with side access. The main entrance is privately placed on the side of the house. Inside the foyer, stairs lead upstairs to the main living areas, or downstairs to the basement. This unfinished area offers the opportunity for expansion if and when required. With this in mind, future plumbing requirements have already been roughed-in. Upstairs, the main hall leads to the formal dining room, with a sloping ceiling, and a private living room, attractively sunken and with a corner gas fireplace. The kitchen overlooks the breakfast area and family room and has a useful eating bar for quick snacks. The family room is comfortably spacious, with a corner gas fireplace and a sliding glass door that leads out to the rear sun deck. The opposite side of the house contains the bedroom wing. The large master suite has a good-sized walk-in closet at the entrance and a three-piece en suite bathroom with a soaker tub. Two additional bedrooms share a three-piece bathroom. Whereas along the hall, a linen closet offers useful storage space across from the laundry room. The adjacent staircase accesses the double-car garage. The exterior of the house is highlighted by brick with stucco and stone pop-outs. With its two rear sun decks, large windows and cathedral design, this house would be ideal for a large lot or a view lot. The house is 42 feet, 8 inches wide and 58 feet, 4 inches deep with 1,720 square feet and an unfinished basement.
