Save
4 likes
Total sq ft
2730
Bedrooms
3
Width × depth
76′10″ × 67′2″

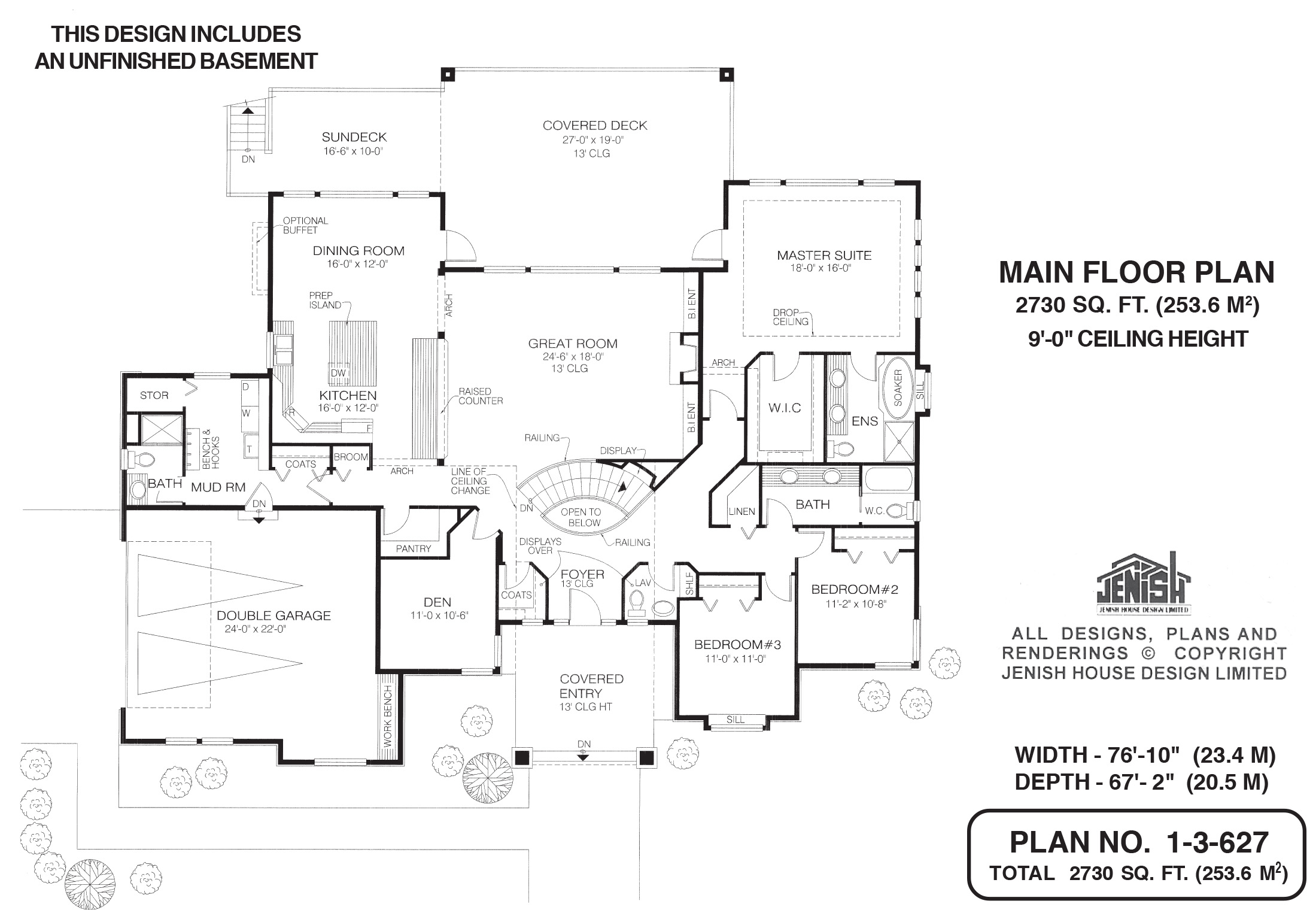

Floor plan — 1-3-627

Floor plan for 1-3-627

Plan specifications

Bedrooms

3, + Den

Garage Spaces

2

Plan Category

Single Family

Storeys

1

Style

Contemporary

House Type/Structure

Straight Entry

Foundation options: Walkout Basement, Inground Basement, Crawlspace, Slab

← Back to all plans

House plan

1-3-627

From: $1,145.00

USD prices are estimates. Checkout is charged in CAD.

What’s included?

Plan Prices and Options

5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.

Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.

Construction PDF Only
A digital PDF of the house plan which includes a single build license.

Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.

Readable Reverse Plan

Add to list

1-3-627

A spectacular curved staircase greets visitors who step in to the foyer of this three-bedroom family home. The foyer’s 13-foot ceiling carries into the spacious great room just behind the staircase. Here, generous windows offer a view to a covered deck and the back garden beyond, and the gas fireplace is flanked by entertainment units. From the great room, an arched entrance leads to the open-plan dining room and kitchen. The dining room looks onto a sundeck, where stairs lead down to the back garden. An optional built-out buffet will come in handy, providing extra storage and serving space. The kitchen is separated from the dining room by a prep island. The L-shaped counter configuration will save steps for the cook, and a raised counter will offer more working room. Natural light will flood in through the window over the double sink. A second archway leads from the kitchen, across the corridor to a walk-in pantry. A coat closet and broom cupboard are located close by. To the left of the foyer is a large coat closet, topped by display shelves. Nearby is a den, ideally located to do duty as a home office. To the right of the foyer is a two-piece powder room with a built-in storage shelf. The master suite, located at the back of the home for privacy, boasts its own door to the covered deck. The room’s drop ceiling will add a touch of elegance. A capacious walk-in closet and an ensuite that features double basins, a soaker tub and a shower stall complete the layout. The secondary bedrooms share a bathroom, also with double basins. Bedroom No. 3 enjoys a window with an extra-wide sill, while the second bedroom’s closet is slightly larger. The double garage has windows that face the street, as well as a built-in workbench. The door opens into a mud room, fitted with a bench and hooks for outerwear. The washer and dryer are also located here, along with a three-piece bathroom and an extra storage area. The curved staircase, which is open to the floor below, leads to the unfinished basement included in the plans. Ceilings are all nine feet, except where otherwise noted. This home measures 76 feet, 10 inches wide and 67 feet, two inches deep, for a total of 2,730 square feet.

  • Den/Study/Office
  • Dining Room
  • Great Room
  • Kitchen Island
  • Master Bedroom on Main Floor
  • Walk-in Closet

Plan preview

Make your plan your own.

Tell us about your property, your ideas, and the changes you have in mind. Our design team is here to help.

Prefer to talk? Call 1-888-458-9235.
