Floor plan — 8-3-236

Bedrooms	3
Floor Plan	Traditional Floor Plan, Unfinished Basement
Garage Spaces	1
Lot	Corner Lot, Flat Lot
Patio/Deck	Sundeck/Balcony
Plan Category	Duplex
Storeys	2
Style	Contemporary, Craftsman, West Coast Contemporary
House Type/Structure	Duplex / Multi Family

← Back to all plans

House plan

8-3-236

Name: 8-3-236
SKU: 8-3-0236
Price: 1265 CAD
Availability: InStock

From: $1,265.00

USD prices are estimates. Checkout is charged in CAD.

What’s included?

Plan Prices and Options

5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.

Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.

Construction PDF Only
A digital PDF of the house plan which includes a single build license.

Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.

Plan Prices and Options

Clear

Foundation Type

2×6 Slab

Readable Reverse Plan

Add for $200.00

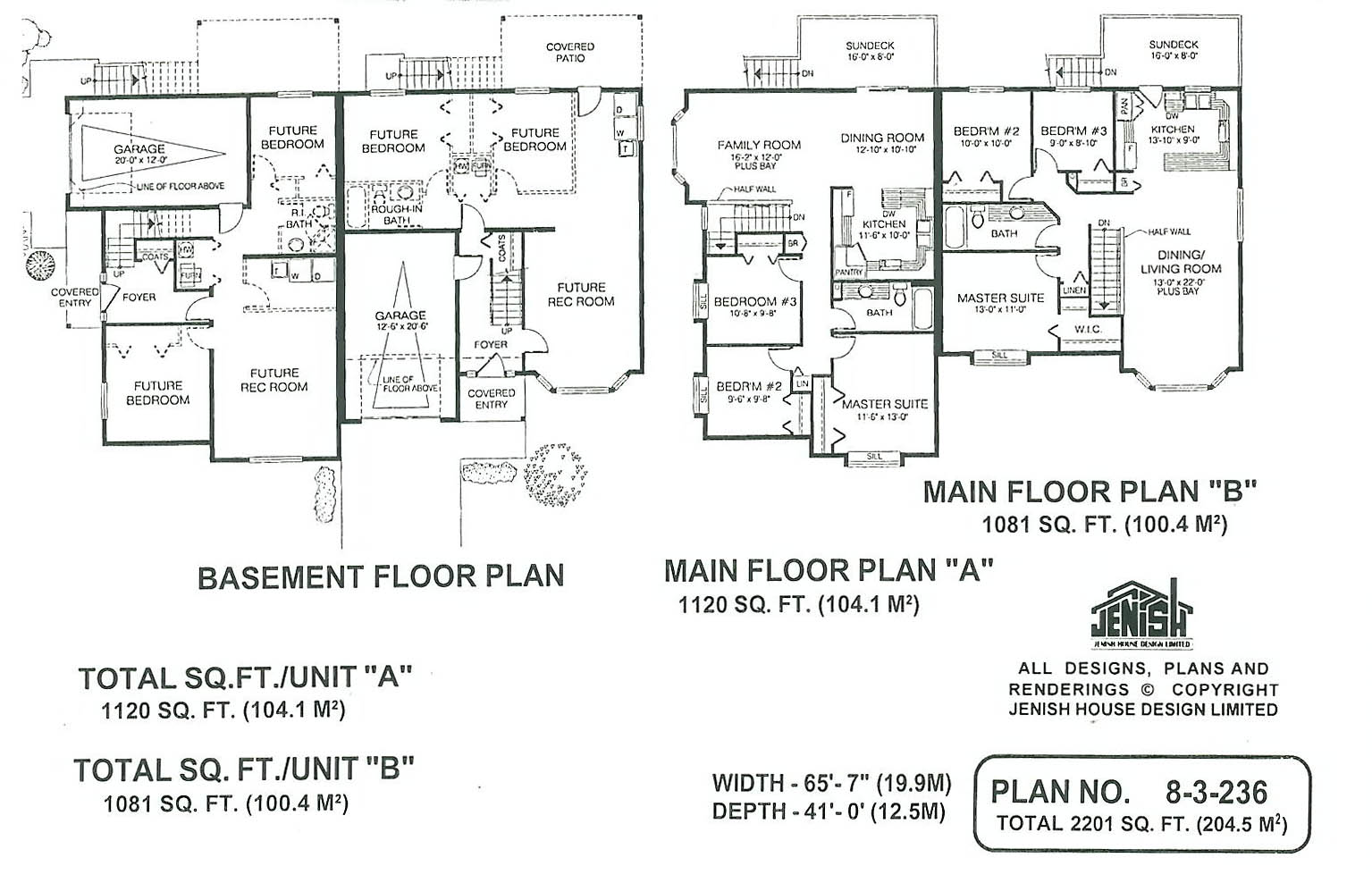

This duplex is the ideal plan to take advantage of a corner lot. Plenty of space is available for each unit, encompassing three bedrooms, a single-car garage and an unfinished basement for future expansion. Unit A is the slightly larger of the two, with l,120 square feet of living space. Inside the covered entrance, stairs lead up to the main living area. The spacious family room has an attractive bay window and the dining room has sliding glass doors with access to the sun deck, where stairs lead down to the back garden. The kitchen is designed with ample countertop space and a pantry for additional storage for canned goods and such. In the sleeping area, the master bedroom and bedroom No.2 are at the front of the duplex, and bedroom No.3 at the side. The main bathroom is located between the master bedroom and the kitchen. Unit B, with 1,081 square feet, has a slightly different layout, with the kitchen at the rear and the living/dining room at the front. The master bedroom faces the front and the two secondary bedrooms are at the rear of this unit. The duplex is 65 feet, 7 inches wide and 41 feet deep.
