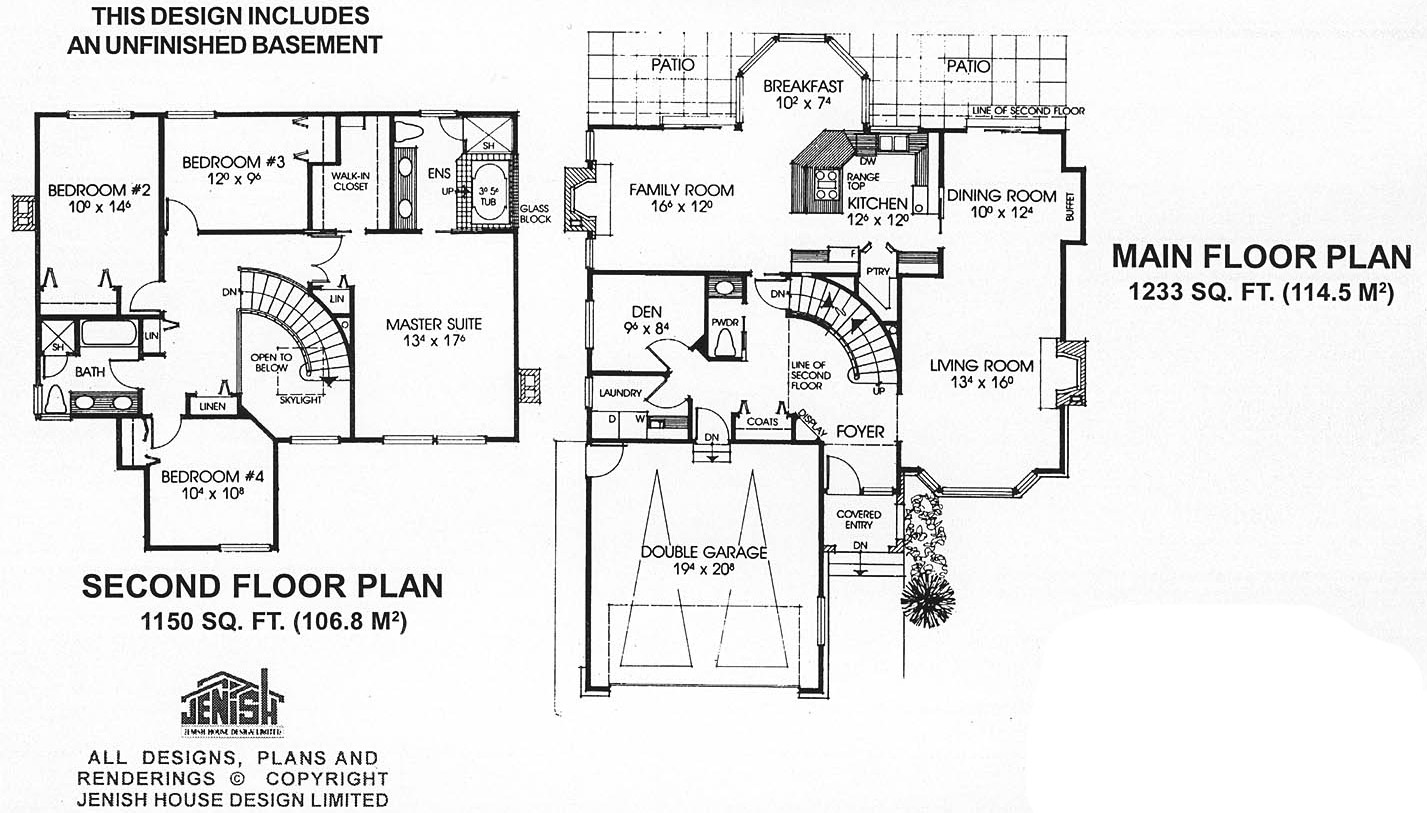

Floor plan — 7-4-654

Bedrooms	4, + Den
Floor Plan	Traditional Floor Plan, Unfinished Basement
Garage Spaces	2
Lot	Flat Lot
Patio/Deck	Patio
Plan Category	Single Family
Storeys	2
Style	Craftsman, Traditional
House Type/Structure	Two Storey

Foundation options: Walkout Basement, Inground Basement, Crawlspace, Slab

← Back to all plans

House plan

7-4-654

Name: 7-4-654
SKU: 7-4-0654
Price: 1065 CAD
Availability: InStock

From: $1,065.00

USD prices are estimates. Checkout is charged in CAD.

What’s included?

Plan Prices and Options

5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.

Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.

Construction PDF Only
A digital PDF of the house plan which includes a single build license.

Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.

Plan Prices and Options

Clear

Foundation Type

2×6 In Ground Basement (stock plan – foundation included)

Readable Reverse Plan

Add for $200.00

Material List

Add for $150.00

This Tudor-style family home will fit comfortably on any urban or suburban lot. A dramatic curved staircase highlights the foyer. To the right of the foyer, the rectangular living and dining room combine to offer an immense space that will make entertaining a breeze. The informal living areas include an extra-large family room with a fireplace and a delightful breakfast room set into a carousel. The kitchen is semi-divided from these two areas, keeping the open flow of the space while partly separating the mealtime working area. An extensive patio runs the width of the house at the rear with access from the family and dining rooms. Upstairs, the master suite is privately located to one side of the house, with a five-piece en suite bathroom that includes a double vanity and a soaker tub with glass-block wall. The three family bedrooms are all larger than average and share the main bathroom. The house is 40 feet, 8 inches wide and 56 feet and 1/4 inch deep with 2,383 square feet of living space.
