- Dining Room
- Family Room
- Kitchen Island
- Living Room
- Master Bedroom on Main Floor
- Nook/Breakfast Area
- Walk-in Closet
- Total sq ft
- 1998
- Bedrooms
- 3
- Width × depth
- 47′4″ × 62′10″

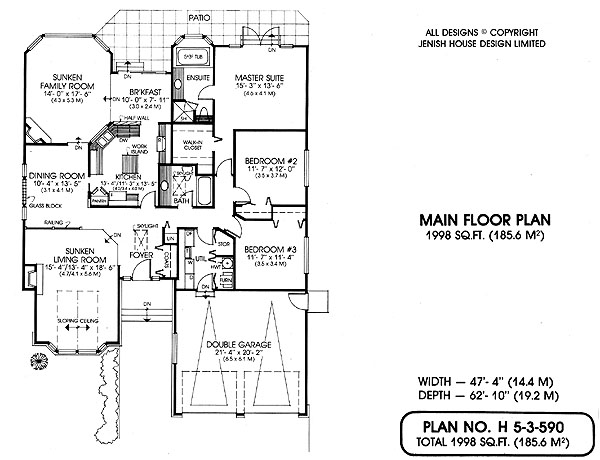

Floor plan — 5-3-590

Plan specifications
| Bedrooms | 3 |
|---|---|
| Floor Plan | Traditional Floor Plan |
| Garage Spaces | 2 |
| Lot | Flat Lot, Rear View Lot |
| Patio/Deck | Patio |
| Plan Category | Single Family |
| Storeys | 1 |
| Style | Contemporary, West Coast Contemporary |
| House Type/Structure | Straight Entry |
Foundation options: Walkout Basement, Inground Basement, Crawlspace, Slab
House plan
5-3-590
From: $985.00
USD prices are estimates. Checkout is charged in CAD.
What’s included?
Plan Prices and Options
5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.
Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.
Construction PDF Only
A digital PDF of the house plan which includes a single build license.
Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.
A bungalow with everything you need on one floor. The covered entry opens up to a brightly lit foyer with a skylight overhead. A step down puts you in the sunken living room with a fireplace and sloped ceiling over the bayed window at the front of the home. Railing divides the living room from the dining room, which, features glass blocks framed on both sides by windows, allowing plenty of light in this room. The sunken family room with fireplace is a step down from the dining room at the rear of the home. A breakfast nook of the family room has sliding glass doors two steps down onto the patio at the rear. The kitchen complete with pantry has a pocket door entrance into the dining room and a door from the foyer, with a work island in the middle and a half wall separating the kitchen from the breakfast nook. The main bathroom brightly lit by a sky lit is across the hall from the utility room that accesses the back door to the double garage. Bedroom three is beside the utility room. Down a short hall are bedroom 2 and the master suite with large walk-in closet, full ensuite, and sliding glass doors onto the patio at the rear. This house is 47 feet, 4 inches wide and 62 feet, 10 inches deep with 1,998 square feet of living space.
