Total sq ft
1797
Bedrooms
3
Width × depth
42′8″ × 61′2″

Floor plan — 5-3-575

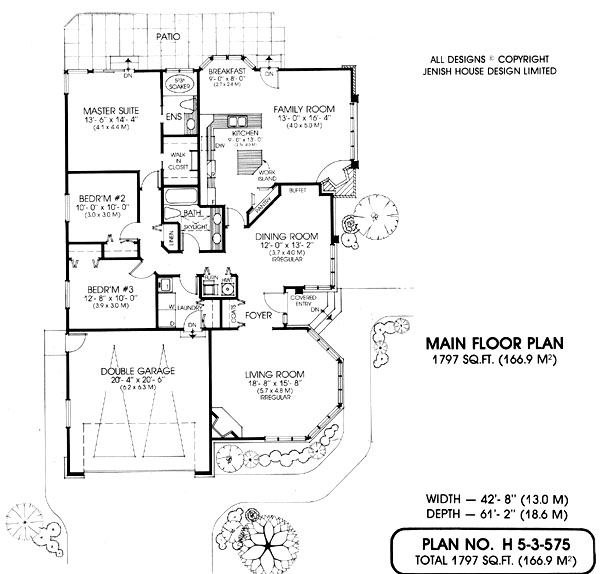

Floor plan for 5-3-575

Plan specifications

Bedrooms

3

Floor Plan

Traditional Floor Plan

Garage Spaces

2

Lot

Corner Lot, Flat Lot

Patio/Deck

Patio

Plan Category

Single Family

Storeys

1

Style

Craftsman, Traditional

House Type/Structure

Straight Entry

Foundation options: Walkout Basement, Inground Basement, Crawlspace, Slab

← Back to all plans

House plan

5-3-575

From: $985.00

USD prices are estimates. Checkout is charged in CAD.

What’s included?

Plan Prices and Options

5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.

Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.

Construction PDF Only
A digital PDF of the house plan which includes a single build license.

Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.

Readable Reverse Plan

Material List

Add to list

5-3-575

This three bedroom, non-basement rancher is designed for comfortable family living. The floor plan offers spacious rooms with excellent separation between common areas. This plan is ideally suited for a corner location because the garage is at the side of the home. The attractive, contemporary exterior design is complemented by the use of stonework, interesting roof lines and multi-paned windows. The spacious effect created by a fully bayed end in the living room is balanced by a corner fireplace which pulls the area together. A convenient buffet nook creates additional space in the dining room, a visually appeasing area, accented by corner windows. Families will appreciate the large family room with a cosy fireplace and access to the patio. This area is open to the kitchen and the bayed breakfast nook, creating a country-kitchen combination that will become a natural gathering place for family and friends. Cooks will appreciate the kitchen with double sink and handy work island. Bedrooms two and three share a full skylit bath with a double vanity. The master suite features sliding glass doors that open to the patio, an en suite with a luxurious soaker tub and walk-in closet. This 1,797 square foot plan is 42′-8″ wide and 61′-2″ deep and features an exterior of stone and siding.

  • Dining Room
  • Family Room
  • Kitchen Island
  • Living Room
  • Master Bedroom on Main Floor
  • Nook/Breakfast Area
  • Walk-in Closet
