- Total sq ft
- 1999
- Bedrooms
- 4
- Width × depth
- 40′8″ × 48′0″

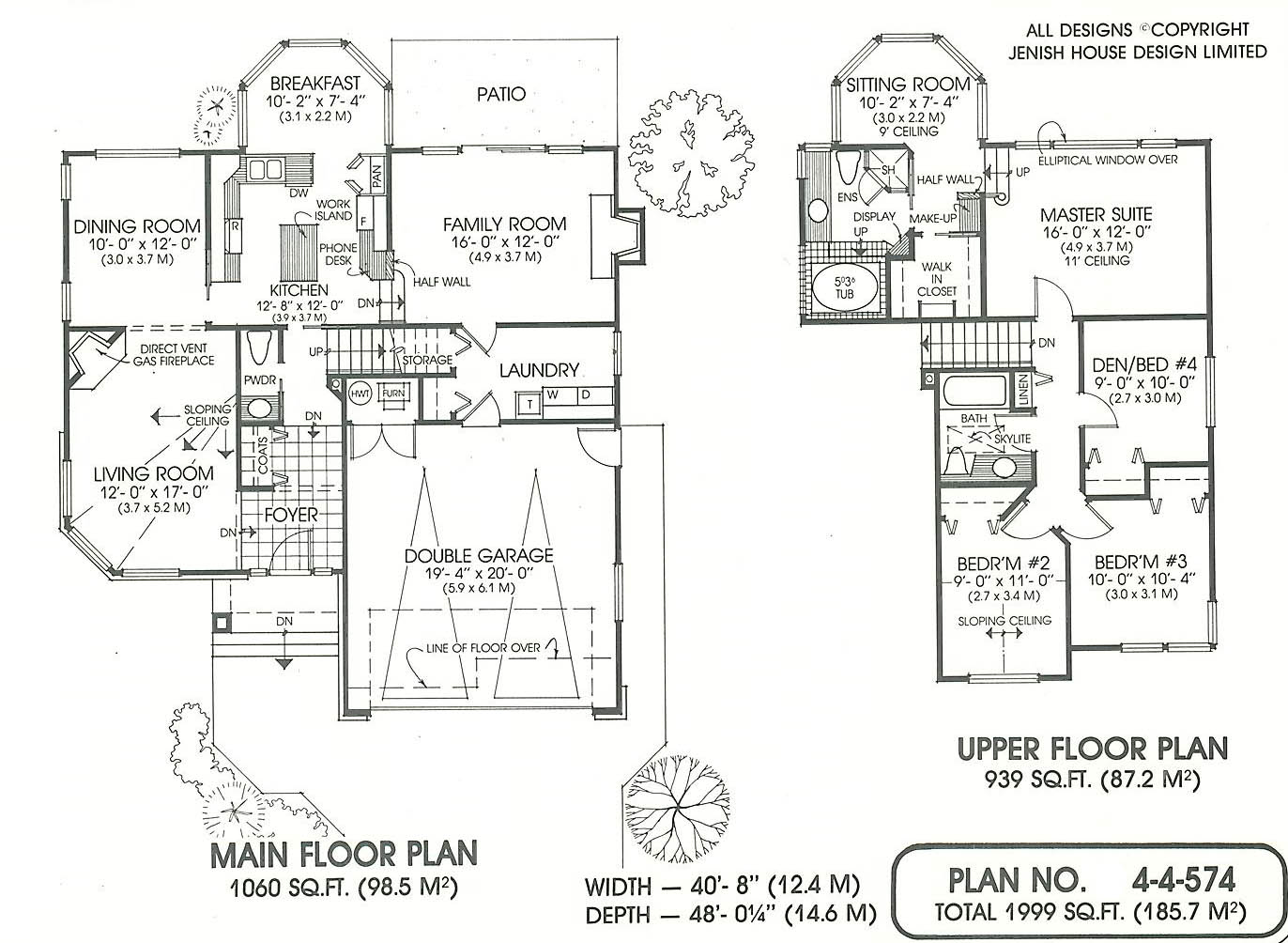

Floor plan — 4-4-574
Plan specifications
| Bedrooms | 4 |
|---|---|
| Floor Plan | Traditional Floor Plan, Unfinished Basement |
| Garage Spaces | 2 |
| Lot | Flat Lot |
| Patio/Deck | Patio |
| Plan Category | Single Family |
| Storeys | 1.5 |
| Style | Contemporary, West Coast Contemporary |
| House Type/Structure | Split Level |
House plan
4-4-574
From: $985.00
USD prices are estimates. Checkout is charged in CAD.
What’s included?
Plan Prices and Options
5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.
Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.
Construction PDF Only
A digital PDF of the house plan which includes a single build license.
Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.
This popular split-level plan is the ideal design for a family home, offering a large living room with sloping ceiling and fireplace just a step up off the generous foyer. A dining room off the living room has a pocket door to the left of the kitchen, which allows for more formal entertaining. The kitchen has a work island in the middle with a breakfast nook at the rear. The family room with fireplace has sliding glass doors onto the patio at the rear. A large laundry room with access to the garage completes the main floor. The sleeping area upstairs includes an outstanding master suite that stretches the width of the house at the rear. It boasts a sitting room with 9 foot ceiling, make-up area, walk-in closet and full ensuite. A hallway leads to the main bathroom, den or 4th bedroom and two generous sized bedrooms facing the front. This house is 40 feet, 8 inches wide and 48 feet deep and has 1,999 square feet of living space. This design includes an unfinished basement
