Total sq ft
2157
Bedrooms
3
Width × depth
47′4″ × 45′6″

Floor plan — 4-3-525

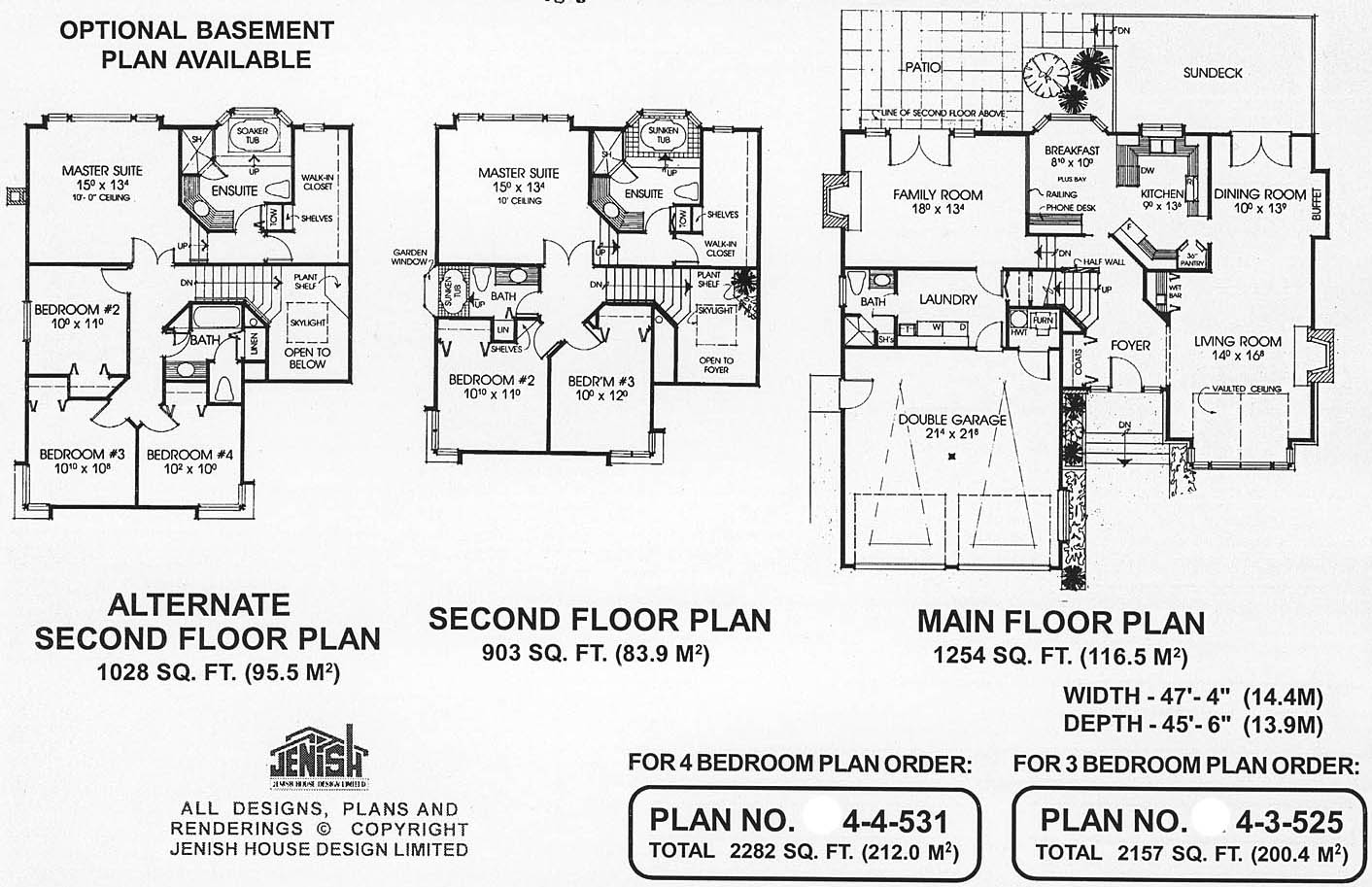

Floor plan for 4-3-525

Plan specifications

Bedrooms

3

Floor Plan

Traditional Floor Plan

Garage Spaces

2

Lot

Flat Lot

Patio/Deck

Sundeck/Balcony

Plan Category

Single Family

Storeys

1.5

House Type/Structure

Split Level

← Back to all plans

House plan

4-3-525

From: $1,065.00

USD prices are estimates. Checkout is charged in CAD.

What’s included?

Plan Prices and Options

5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.

Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.

Construction PDF Only
A digital PDF of the house plan which includes a single build license.

Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.

Readable Reverse Plan

Material List

Add to list

4-3-525

This popular split-level plan is the ideal design for a family home, offering a large, comfortable living area and space for more formal entertaining. A vaulted ceiling highlights the rectangular living room and french doors in the dining room open to the sun deck at the rear . The family room also has french doors that lead to a patio. Steps from the patio connect to the sundeck, with a small garden area between the two. This extensive outdoor area will be a great place for guests to gather and for family barbecues. A railing provides a decorative separation between the family room and the breakfast nook and kitchen, while maintaining the open feeling of this area. A good-sized laundry room will help to streamline this family chore. The sleeping area upstairs includes an outstanding master suite that stretches the width of the house at the rear. Double doors open to the bedroom itself, which has a bay window and steps up to the spacious en suite bathroom, with a soaker tub set into a bay. An outsized walk-in closet provides ample space for storage. The house is 47 feet wide and 45 feet, 6 inches deep with 2,157 square feet of living space and an optional basement.

  • Dining Room
  • Family Room
  • Living Room
  • Master Bedroom on Upper Floor
  • Nook/Breakfast Area
  • Walk-in Closet
