- Dining Room
- Great Room
- Kitchen Island
- Master Bedroom on Main Floor
- Upper Floor Laundry
- Walk-in Closet
- Total sq ft
- 2154
- Bedrooms
- 3
- Width × depth
- 62′5″ × 70′0″

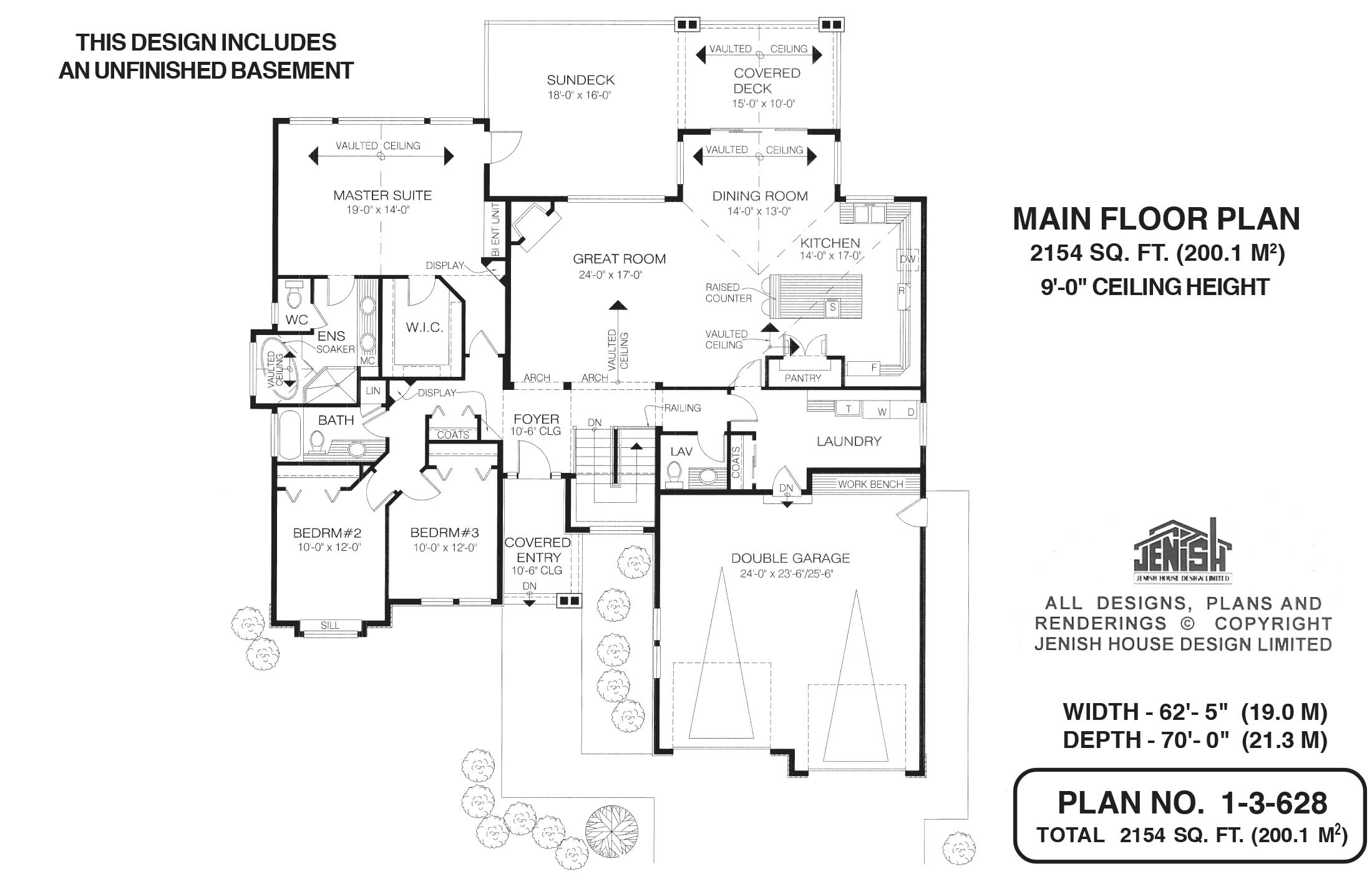

Floor plan — 1-3-628

Plan specifications
| Bedrooms | 3 |
|---|---|
| Floor Plan | Open Floor Plan, Unfinished Basement |
| Garage Spaces | 2 |
| Lot | Rear Sloping Lot, Rear View Lot, Walk-Out Basement |
| Patio/Deck | Covered Porch/Deck, Covered Rear Porch/Deck, Sundeck/Balcony |
| Plan Category | Single Family |
| Storeys | 1 |
| Style | Contemporary |
| House Type/Structure | Straight Entry |
Foundation options: Walkout Basement, Inground Basement, Crawlspace, Slab
House plan
1-3-628
From: $1,065.00
USD prices are estimates. Checkout is charged in CAD.
What’s included?
Plan Prices and Options
5 Copy Set
This includes 5 paper copies printed and shipped to you. Two copies marked for permit use and three copies marked for construction use.
Construction Package (5 + Single Build PDF)
This includes the 5 Copy Set and the Single Build PDF Only.
Construction PDF Only
A digital PDF of the house plan which includes a single build license.
Weatherproof Copy
One printed set of the construction drawings on water and tear resistant paper.
In this handsome three-bedroom ranch-style home, vaulted ceilings in not only the great room and dining room, but the kitchen as well, lend these important areas a sense of lofty elegance and spaciousness. The covered entry leads into a compact foyer with a coat closet on the left and a U-shaped stairway to the unfinished basement, included in the plans. Directly ahead, through an archway, is the great room, with a corner fireplace located so that it will cast its rosy glow into the kitchen and dining room. Natural light will flood into the room through large windows that overlook a roomy sundeck at the back of the home. The dining room features sliding doors that open onto the covered portion of the deck that will provide a sheltered spot for year-round barbecuing. The kitchen features a work island with a raised, two-seat eating bar for casual meals and snacks. A large walk-in pantry will provide always-welcome storage space, and the window over the double sink overlooks the back garden. The master suite, located at the back of the house for privacy, also features a vaulted ceiling, as well as an entertainment unit and a display area that could accommodate collectibles or DVDs. The walk-in closet should be roomy enough for even the most fashion-conscious couple’s clothing and accessories. In the ensuite, still another vaulted ceiling over the soaker tub, which is set into its own bayed-out nook, provides a touch of spa-like luxury. A glass shower stall and double basins complete the amenities. The two secondary bedrooms share a three-piece bath with a linen closet situated just inside the door. Bedroom No. 2 boasts an extra-wide window sill that could serve as a window seat. The double garage is spacious enough to include a workbench, and enjoys access to the laundry room, which includes a built-in table for folding sheets and towels, as well as a closet for family gear. Nearby is a powder room. This home measures 62 feet, five inches wide by 70 feet deep, for a total of 2,154 square feet of living space.
Make your plan your own.
Tell us about your property, your ideas, and the changes you have in mind. Our design team is here to help.
